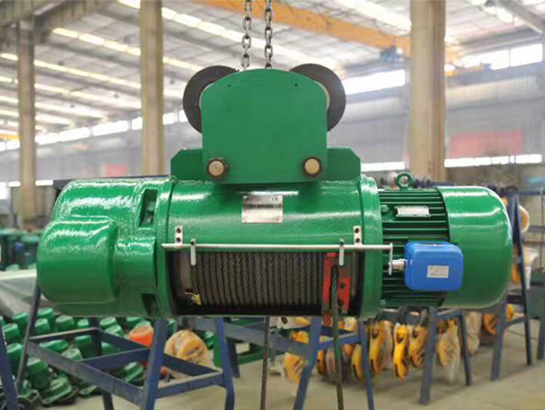

CD1 MD1 Wire Rope Electric Hoist

Product Type: Electric Wire Rope Hoist

Lifting Weight: 0.25t-32t

Lifting Height: 6m-45m

Working Level: A4

Chat Now

Leave Message

Send Email:info@craneweihua.com

Whatsapp:8613839050298

Overview

Features

Parameter

Application

Overview

The CD1 MD1 Wire Rope Electric Hoist is a compact and durable lifting solution designed for industrial and construction applications. It features a robust wire rope mechanism, ensuring reliable performance for lifting, lowering, and transporting heavy loads with precision. Its electric-powered operation enhances efficiency while reducing manual labor.

This hoist is built with a high-strength wire rope for smooth and safe load handling. The lightweight yet sturdy design allows for easy installation and operation in workshops, warehouses, and production lines. It includes overload protection, thermal safety mechanisms, and a reliable braking system for enhanced safety.

Ideal for material handling, assembly lines, and maintenance tasks, the CD1 MD1 hoist offers high lifting speeds and low noise operation. Its energy-efficient motor and low maintenance requirements make it a cost-effective choice for various industries, improving productivity and workplace safety.

Model CD1/MD1 wire rope electric hoist is a small-sized lifting equipment, which can be mounted on single beam crane, overhead crane, gantry crane and jib crane. With slight modification, CD1/MD1 wire rope electric hoist can be also used as winch.

Features

The CD1 MD1 Wire Rope Electric Hoist offers high durability with its robust construction and high-strength wire rope, ensuring reliable performance in demanding environments. Its compact and lightweight design allows for easy installation and operation in tight spaces, while the efficient electric-powered system provides smooth and precise load handling. Enhanced safety features, including overload protection, thermal safety switches, and a fail-safe brake, ensure secure operation. With low maintenance requirements and an energy-efficient motor, it reduces operational costs, making it a versatile and cost-effective solution for workshops, warehouses, construction, and industrial material handling.

High Durability

Built with robust materials and a high-strength wire rope, ensuring long-lasting performance even in demanding industrial environments.

Compact & Lightweight Design

Easy to install and maneuver, making it ideal for workshops, warehouses, and confined workspaces.

Efficient & Reliable Operation

Electric-powered with smooth lifting/lowering control, reducing manual effort and improving productivity.

Enhanced Safety Features

Equipped with overload protection, thermal safety switches, and a fail-safe braking system for secure load handling.

Low Maintenance & Energy-Efficient

Designed for minimal upkeep with an energy-saving motor, reducing operational costs.

Versatile Applications

Suitable for material handling, assembly lines, construction, and maintenance tasks, offering flexibility across industries.

Didn't find your industry solution? Consult our technical experts immediately.

Get Customized Quote

Parameter

Model	Lifting Weight	Lifting Speed	Running Speed	Hoisting Motor		Running Motor		Weight
Model	t	m/min	m/min	Model	Power kW	Model	Power kW	kgs
CD 1T-12M	1	8	20	ZD22-4	1.5	ZDY11-4	0.2	172
CD 3T-12M	3	8	20	ZD41-4	7.5	ZDY12-4	0.8	597
CD 5T-12M	5	8	20	ZD41-4	7.5	ZDY21-4	0.8	597
CD 10T-12M	10	7	20	ZD51-4	13	ZDY21-4	0.8	1100
CD12T-12M	12	3.5	18	ZD51-4	13	ZDY21-4	0.8	1200
CD 16T-12M	16	3.5	18	ZD51-4	13	ZDY21-4	0.8	1200
CD 20T-12M	20	4.2	14	ZD52-4	18.5	ZDY21-4	0.8	1930
CD 32T-12M	32	3	16	ZDx62-6	18.5	ZDY22-4	1.5	2950

Note:
Lifting height can be customized i.e. 6m, 9m, 20m

Model	Lifting Height	Lifting Speed	Running Speed	Hoisting Motor		Running Motor		Weight
Model	t	m/min	m/min	Model	Power kW	Model	Power kW	kgs
MD 1T-12M	1	8/0.8	20	ZDS22-4	1.5/0.2	ZDY11-4	0.2	199
MD 3T-12M	3	8/0.8	20	ZDS41-4	7.5/0.8	ZDY12-4	0.8	654
MD 5T-12M	5	8/0.8	20	ZDS41-4	7.5/0.8	ZDY21-4	0.8	654
MD 10T-12M	10	7/0.7	20	ZDS51-4	13/1.5	ZDY21-4	0.8	1150
MD 12T-12M	12	3.5/0.35	18	ZDS51-4	13/1.5	ZDY21-4	0.8	1280
MD 16T-12M	16	3.5/0.35	18	ZDS51-4	13/1.5	ZDY21-4	0.8	1280
MD 20T-12M	20	4.2/0.42	14	ZDS52-4	18.5/2.2	ZDY21-4	0.8	1450
MD 32T-12M	32	3/0.3	16	ZDx62-6	18.5/2.2	ZDY22-4	1.5	2950

Note:
Lifting height can be customized i.e. 6m, 9m, 20m

Application

The CD1 MD1 Wire Rope Electric Hoist is widely used in manufacturing workshops, warehouses, construction sites, and assembly lines for efficient material handling. It's ideal for loading/unloading goods, equipment installation, and maintenance operations in industries like automotive, machinery, and logistics. With its compact design and reliable performance, it also serves well in shipbuilding, mining, and power plants, providing safe and precise lifting solutions for various heavy-duty applications.
