Crane Cabin Air Conditioner

Product Name: Crane Cabin Air Conditioner for Bridge/Gantry Cranes

Operating temperature: -30℃ to 55℃

Input power: AC380V 50Hz

Chat Now

Leave Message

Send Email:info@craneweihua.com

Whatsapp:8613839050298

Overview

Features

Parameter

Application

Overview

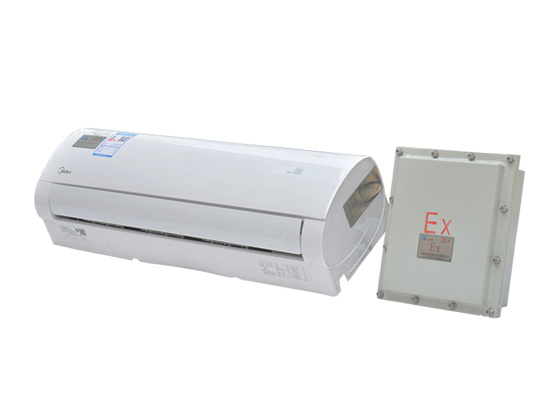

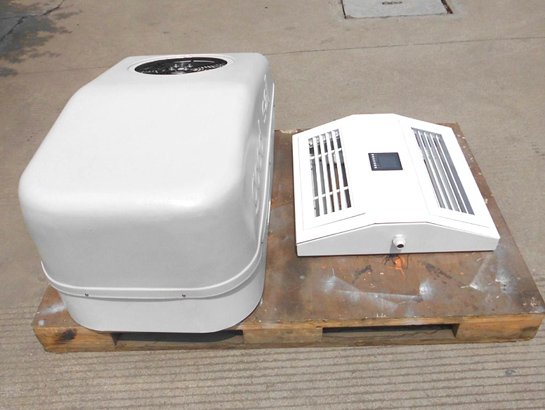

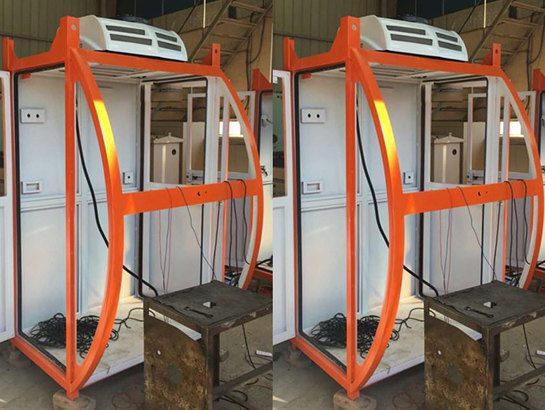

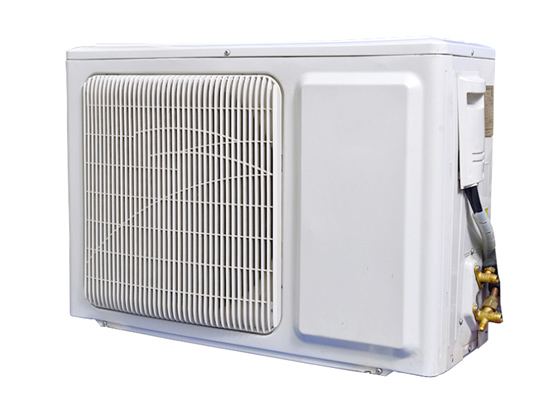

Crane cabin air conditioner is a split type ac unit designed to cool down the overhead crane or gantry crane operator cabin and electrical room in high temperature environment. With unique design, the crane cabin air conditioner can be used in harsh environments with high temperature, strong vibration and harmful gases. It is widely used in the crane cabin, electrical room and high-pressure room in the field of metallurgical industry, steel mills, aluminum plants, field operations and coking industries such as coke blocking car, quenching car, coal charging car, coke pushing car, etc.

Weihua can provide a variety of crane air conditioner models for users to choose from, such as integrated, split, ceiling and wall-mounted air conditioners. Crane cab air conditioners can provide a comfortable working environment for crane operators, improve lifting work efficiency, and reduce the probability of risks in lifting work.

Features

Crane cab air conditioners are professionally designed to achieve a balance between reliability, energy efficiency and user experience, directly reducing operator fatigue and indirectly improving operational safety and equipment utilization. When purchasing, you need to match the specific model according to the crane type (such as tower, bridge, portal) and the use environment.

Efficient cooling/heating, adaptable to extreme environments

Fast temperature adjustment: Use high-power compressors and high-performance heat exchangers to quickly adjust the temperature in the cab to cope with high temperature exposure or severe cold environments. Wide temperature range operation: Some industrial-grade models can work stably under extreme conditions of -30℃ to 50℃, ensuring that they can be used in all seasons.

Energy saving and environmental protection, reducing operating costs

Inverter technology: Intelligently adjust the compressor speed, reduce energy consumption, and extend equipment life (such as models equipped with DC inverters can save more than 30% energy). Environmentally friendly refrigerant: Use new refrigerants such as R410A, with zero ozone depletion potential (ODP), in compliance with environmental regulations.

Strong vibration resistance and durability

Industrial-grade structural design: The outer shell is made of galvanized steel plate or engineering plastics, and the internal components are treated with anti-loosening to withstand continuous vibration and impact during crane operations.

Compact installation and convenient maintenance

Modular design: Adapt to the space limitations of the cabs of cranes of different brands, and some models support split installation (external condenser). Easy-to-maintain structure: The filter can be quickly disassembled and cleaned, and the fault code display function simplifies the maintenance process.

Didn't find your industry solution? Consult our technical experts immediately.

Get Customized Quote

Parameter

Model	XLDR-40AT
Rated refrigerating capacity	4000 W
Rated heating capacity	4000 W
Refrigerating input power	2400 W
Heating input power	4200 W
Indoor fan flow	1000 mm3/h
Refrigerant	environmentally fiendly mixed refigerant
Whole unit weight	130 kg/ 5 kg
Dimension(LWH)	1170x785x520
Operation box size (LWH)	250x165x115

Note: working conditions for refrigerating capacity test:
outdoor dry bulb temperature: 55℃
indoor dry bulb temperature: 30℃
indoor wet bulb temperature: 24℃

Application

Crane cab air conditioning is widely used and critical, mainly for harsh working conditions such as high temperature, high humidity, dust, vibration, etc., to provide a comfortable environment for operators and ensure safe and efficient operation. The following are its typical application scenarios and specific solutions: port terminals (quay cranes, gantry cranes, etc.), metallurgical/casting workshops (casting cranes, metallurgical bridge cranes), open-pit mines (mining excavators, stackers and reclaimers), construction sites (tower cranes, truck cranes), container yards (RTG tire cranes, rail cranes), etc.
