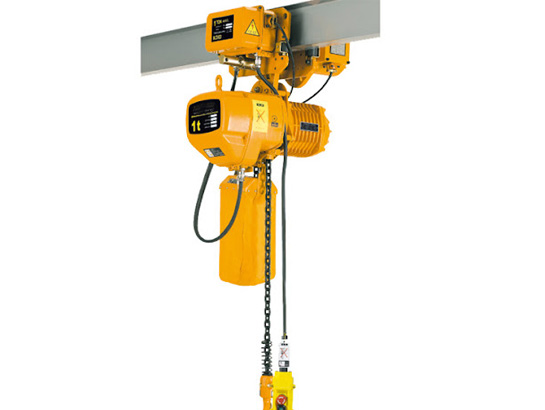

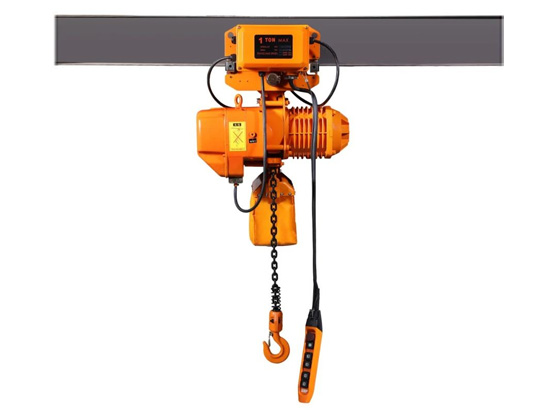

1 Ton Electric Chain Hoist

Product: 1t Chain Hoist

Capacity: 1 ton (1000kg)

Type: Single Chain and Double Chain

Application: single girder overhead crane, double girder overhead crane, jib crane, gantry crane.

Chat Now

Leave Message

info@craneweihua.com

Whatsapp:8613839050298

Overview

Features

Parameter

Application

Overview

The 1-ton electric chain hoist is a compact and powerful lightweight lifting device. 1 ton hoist integrates the motor, reducer, braking system, and chain into a robust housing, suitable for material lifting, installation, and maintenance operations in factories, workshops, warehouses, docks, and other locations. The 1-ton electric hoist is designed with safety, efficiency, and ease of use in mind.

1-ton, 6-meter chain hoist is suitable for various workplaces. It can be used with bridge cranes, gantry cranes, or jib cranes.

WEIHUA Electric hoist is widely used for lifting, moving, loading and loading material. Ask us. Electric hoist is a small lifting equipment, compact structure, light weight. Contact us and get 1t hoist price!

Features

The Weihua 1-ton electric chain hoist is a mature, stable, and economical industrial lifting tool. With its robust structure, reliable safety performance, and precise control, it can well meet the lifting needs of most materials weighing 1 ton or less, making it an ideal choice for small and medium-sized enterprises and individual users.

High-Strength Lifting Chain

1 Ton chain hoist made of high-quality alloy steel, G80 grade lifting chain, featuring high strength, excellent wear resistance, and ample toughness. The surface is typically galvanized or phosphated, providing excellent rust and corrosion resistance, extending service life in harsh environments.

High-Efficiency and Reliable Motor

Utilizing a three-phase asynchronous motor or a single-phase capacitor starter motor (optional, depending on the model), providing smooth and powerful performance. High motor insulation class (typically F or H), with overheat protection, capable of withstanding frequent starts and stops and prolonged continuous operation.

Advanced Braking System

Typically equipped with a dual braking system: Mechanical disc brake: As the main brake, it automatically brakes immediately upon power failure, ensuring safety and reliability. Electromagnetic brake: As an auxiliary brake, providing double protection, ensuring safe stopping of the load in any position. Sensitive braking response, high braking torque, and extremely high safety.

Precise Lifting and Lowering Control

Using infinite inching control and operated via a suspended push-button switch, millimeter-level micro-motion precision positioning of the load can be achieved, facilitating installation and alignment operations.

Didn't find your industry solution? Consult our technical experts immediately.

Get Customized Quote

Parameter

Parameter	Specification (1 Ton Model)
Rated Lifting Capacity	1 Ton (1000 kg)
Lifting Height	Standard: 3m, 6m, 9m (Customizable according to customer requirements)
Lifting Speed	Single Speed: Approx. 4-6 m/min \| Dual Speed: Normal/Slow optional (e.g., 4/0.8 m/min)
Working Voltage	380V / 50Hz (Three-phase) or 220V / 50Hz (Single-phase)
Duty Class	M3 / M4 (Suitable for medium duty cycle)
Motor Power	Approx. 1.5 kW (Varies by model and speed)
Protection Class	Typically IP54 (Dust and splash water protection)
Number of Chain Falls	Typically 1 or 2 falls

Note: The above specifications are general descriptions for Weihua's 1 ton electric chain hoist series. Specifications may vary by specific model. Please consult the latest official product catalog or contact Weihua sales representatives for the most accurate and detailed technical parameters and configuration information before purchase.

Application

Manufacturing: A 1-ton chain hoist can be used for lifting workpieces, installing equipment, and maintaining equipment on the production line. Warehousing and Logistics: Chain hoists are used for loading, unloading, and stacking goods in warehouses. Automotive Repair: A 1-ton electric hoist can lift small and light components such as engines and gearboxes. Construction: Vertical transportation of small building materials and equipment. Workshops and Laboratories: Weihua 1-ton chain hoists serve as the lifting mechanism for stationary or mobile hoist cranes.
