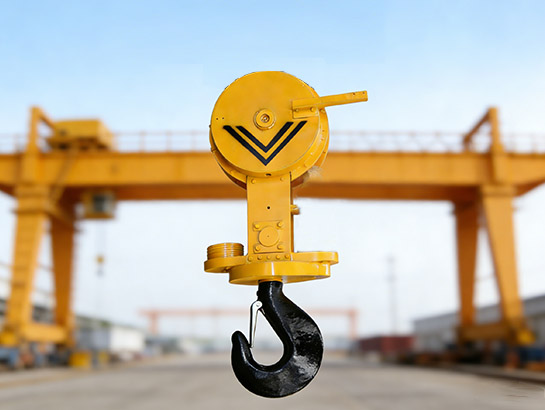

Gantry Crane Hook

Type: Single C or Ramshorn Hook

Lifting capacity: 0.5 t- 500 t

Material: cast steel/forged steel

Applications: hoists, winches, and cranes

Chat Now

Leave Message

Send Email:info@craneweihua.com

Whatsapp:8613839050298

Overview

Features

Parameter

Application

Overview

The hook of a gantry crane is the core component of the lifting equipment. It directly undertakes the function of lifting heavy objects. Its safety and reliability are crucial. The hook is usually forged or rolled from high-strength alloy steel and undergoes a heat treatment process to enhance toughness and fatigue resistance. According to the structure, it can be divided into single hook and double hook. The single hook is suitable for light to medium loads, while the double hook is used for heavy or large tonnage lifting occasions.

The design of the gantry crane hook must comply with international standards (such as ISO, DIN) or industry specifications (such as GB/T 10051), and be equipped with safety devices such as anti-unhooking locks or locking devices to prevent the rope from accidentally slipping during lifting. In addition, the hook needs to be regularly subjected to non-destructive testing (such as magnetic particle testing, ultrasonic testing) and load testing to ensure that there are no hidden dangers such as cracks, deformation or excessive wear.

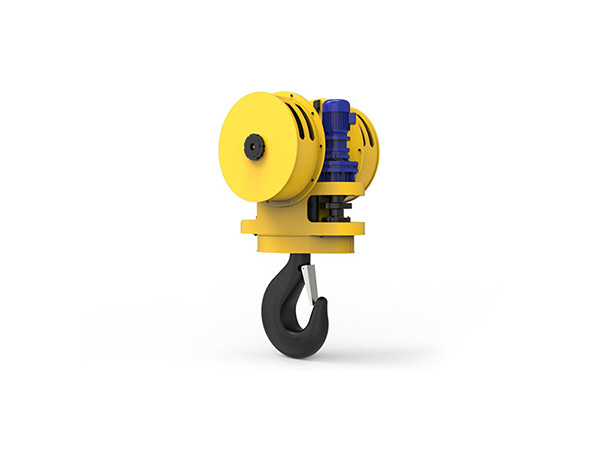

On the gantry crane, the hook is connected to the lifting mechanism through a pulley block, and is used with a wire rope or chain to achieve vertical lifting. According to the working conditions, special types such as rotating hooks and electric hooks can also be selected to improve operational flexibility and efficiency.

Features

Gantry crane hooks have demonstrated excellent operating performance and safety and reliability in heavy industrial fields such as ports, shipbuilding, and wind power through the integration of innovative design and intelligent technology. Its environmental adaptability and intelligence level continue to lead the industry standards.

Heavy-load stability performance

(1) Adopting high-strength alloy steel integral forging process, the load-bearing capacity reaches 5-500 tons
(2) Optimized cross-section design achieves optimal stress distribution, with a safety factor of ≥5 times
(3) Equipped with a dual-bearing rotation system to ensure stable rotation under heavy loads
(4) Reliability verified by 3 million fatigue tests

Environmental adaptability

(1) Anti-corrosion type: triple protective coating, salt spray resistance up to 6000 hours
(2) Weather-resistant type: -40℃ to +60℃ all-weather applicable
(3) Explosion-proof type: ATEX explosion-proof certification
(4) Dust-proof type: IP65 protection grade sealing design

Intelligent safety system

(1) Five-fold safety protection: mechanical lock + electronic limit + load monitoring + anti-unhooking + emergency braking
(2) Real-time status monitoring: integrated weight, angle, and temperature sensors
(3) Intelligent early warning system: early alarm for abnormal conditions
(4) Data traceability function: complete record of operating parameters

High-efficiency operating performance

(1) Low-resistance rotating mechanism, rotation torque ≤1% rated load
(2) Quick-change design, attachment switching time <90 seconds
(3) Anti-sway control system, swing amplitude reduced by 60%
(4) Ergonomic optimization, operating force reduced by 40%

Didn't find your industry solution? Consult our technical experts immediately.

Get Customized Quote

Parameter

tonnage	Dimensions in mm											Installing wire rope
tonnage	A	B	AND	G	D	D1	L	L1	L2	d	c	Diameter (mm)	Number of branches
3.2t	637	338	245	130	250	/	222	/	/	65	50	11～14	4
5t	846	382	320	236	350	/	184	/	/	85	650	11～14	4
10t	1110	370	420	240	400	250	93	/	/	120	90	11～14	6
16t	1277	512	440	285	500	300	179	/	/	150	115	14～20	6
20t	1440	516	520	335	500	/	134	94	/	170	130	16～20	8
32t	1730	596	610	420	610	/	154	108	/	210	160	18～22	8
50t	2085	724	720	510	710	610	161	108	/	270	205	20～22	10
75t	2335	970	930	600	800	500	185	135	/	320	250	26～32	10
100t	3130	1360	1100	955	1000	800	131	200	350	335	270	28～34	12
200t	3548	1707	1090	1318	1000	900	173	280	/	295	/	30～38	16
320t	4005	2004	1350	1235	1120	1000	160	316	/	370	/	40～46	24
400t	4315	2338	1450	1270	1120	1000	160	316	/	420	/	40～46	24

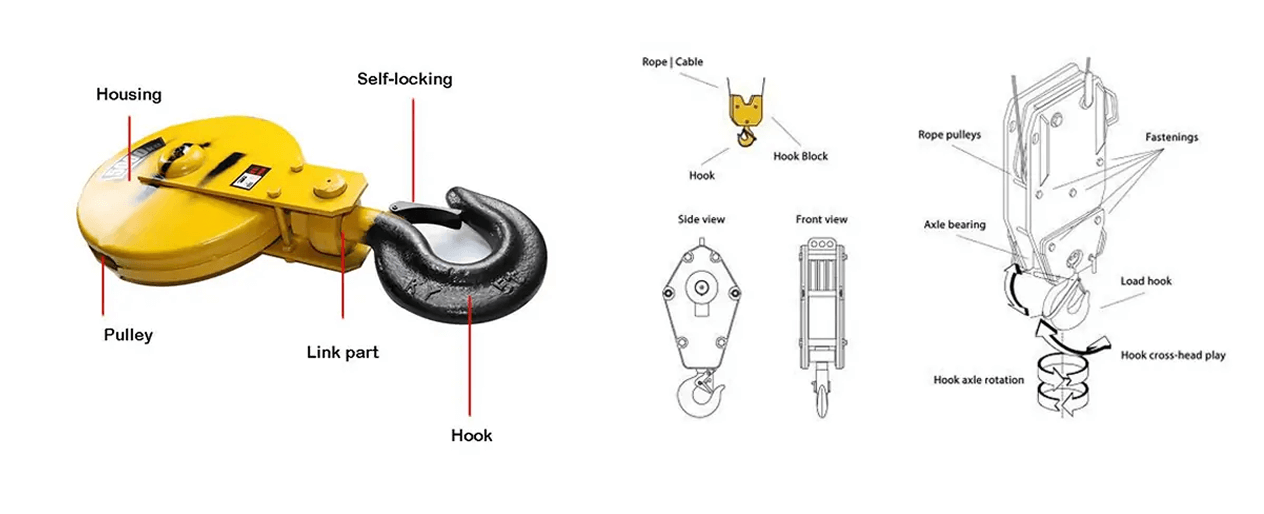

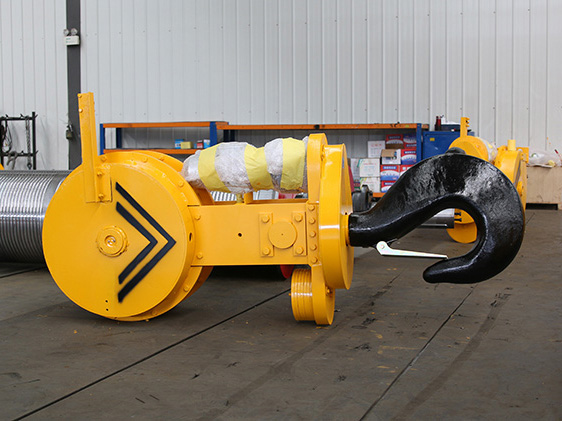

The Crane Hook Block consists of a hook, hook beam, thrust bearing, hook nut, pulley, pulley shaft, side plate, safety latch, etc. The following are the detailed functions of each component:

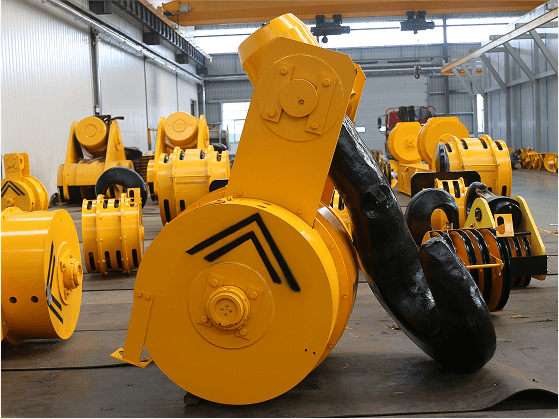

Hooks and beams: Forged or laminated construction for high strength; double hook version for heavy-duty applications (20 to 500 tons).
Hooks and beams: Forged or laminated construction for high strength; double hook version for heavy-duty applications (20 to 500 tons).
Hooks and beams: Forged or laminated construction for high strength; double hook version for heavy-duty applications (20 to 500 tons).
Hooks and beams: Forged or laminated construction for high strength; double hook version for heavy-duty applications (20 to 500 tons).
Hooks and beams: Forged or laminated construction for high strength; double hook version for heavy-duty applications (20 to 500 tons).

Application

The Crane Hook Blocks are usually used in conjunction with overhead cranes, gantry cranes, jib cranes and electric hoists, and are widely used in the following scenarios:
