Mobile Crane Hook Block

Type: Single C or Ramshorn Hook
Lifting capacity: 3 t- 1200 t
Material: cast steel/forged steel
Applications: mobile cranes, tire cranes, truck crane,and crawler cranes
Overview
Features
Parameter
Application
Overview

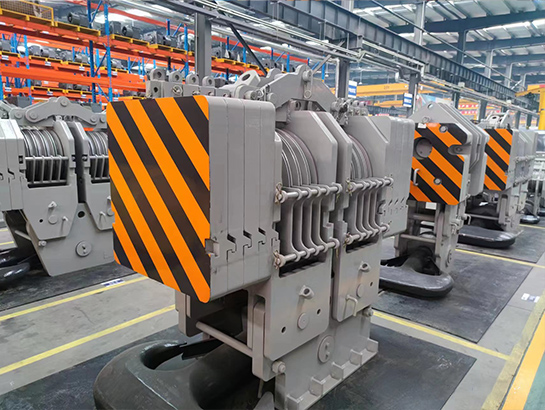

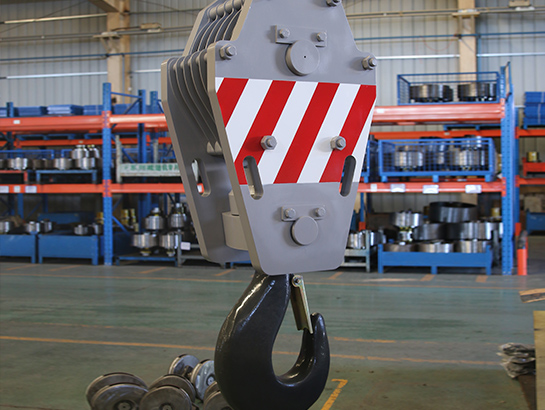

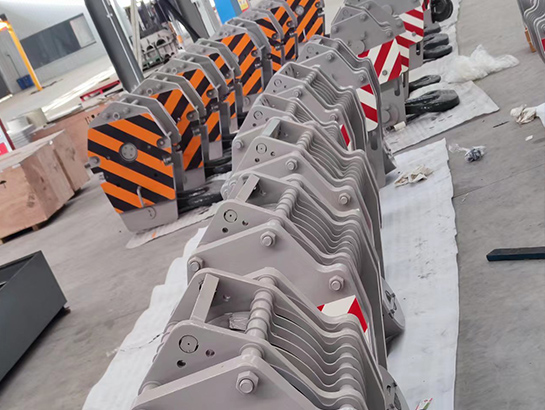

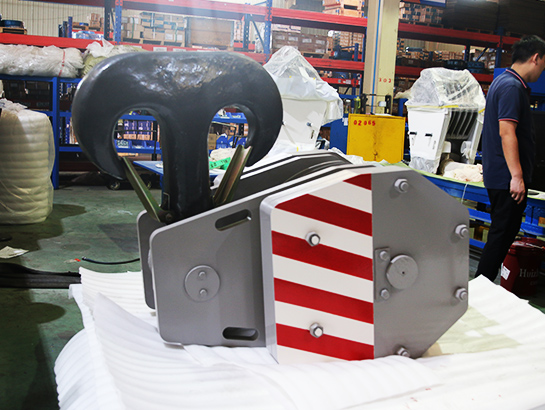

The Mobile Crane Hook Block is a core lifting component designed for mobile equipment such as truck cranes and all-terrain cranes. It adopts a high-strength alloy steel forged main structure with integrated swivel bearings and anti-twist devices. Its core features include modular quick-release design (suitable for 3-500 ton cranes), intelligent load monitoring system (real-time display of weight/angle) and multi-pulley configuration (2-6 wheel sets) to meet the needs of fast site transfer and precise lifting.

The Mobile Crane Hook Block assembly is equipped with an intelligent load monitoring system, which provides real-time feedback of weight and angle data to help operators accurately control the lifting process. The hook head undergoes a special heat treatment process to significantly improve fatigue resistance and adapt to high-intensity operation requirements. In addition, optional electronic anti-sway system and environmentally resistant coating can further enhance stability and adaptability under complex working conditions.

It is suitable for a variety of scenarios such as urban construction, logistics loading and unloading, equipment installation, etc., especially for engineering tasks that require frequent transfer and high-precision lifting. The product strictly follows international safety standards to ensure reliability and safety in various operating environments, and is an ideal choice for efficient operation of mobile cranes.
Features
Mobile Crane Hook Block stands out for its exceptional durability and versatility, featuring high-strength forged steel construction, smooth 360° rotation capability, and integrated load monitoring for precise control. Its anti-twist design prevents cable entanglement while optional smart features like anti-sway systems and environmental coatings ensure reliable performance across diverse job sites - from urban construction to emergency response - delivering both safety and efficiency in demanding lifting operations.
High-strength and durable structure
Made of high-quality alloy steel and subjected to special heat treatment process, it has excellent fatigue resistance and load-bearing capacity, and can cope with high-frequency and heavy-load operation requirements for a long time.
Intelligent safety control system
Integrated real-time load monitoring and angle feedback functions, with optional electronic anti-sway system, effectively prevent overload and hanging object shaking, greatly improving operation safety.
Flexible rotation and anti-winding design
Equipped with 360° stepless slewing bearing and patented anti-twist device, it completely solves the problem of wire rope winding, realizes precise positioning and efficient lifting.
Full working condition adaptability
The modular design supports quick replacement of accessories, and the corrosion-resistant/low-temperature coating options make it capable of various extreme environment operations from tropical ports to extremely cold areas.
Didn't find your industry solution? Consult our technical experts immediately.
Parameter
Tonnage Size(mm) Installing wire rope
A B E G D D1 L L1 L2 d c diameter(mm) Number of branches
3.2t 637 338 245 130 250 / 222 / / 65 50 1114 4
5t 846 382 320 236 350 / 184 / / 85 650 1114 4
10t 1110 370 420 240 400 250 93 / / 120 90 1114 6
16t 1277 512 440 285 500 300 179 / / 150 115 1420 6
20t 1440 516 520 335 500 / 134 94 / 170 130 1620 8
32t 1730 596 610 420 610 / 154 108 / 210 160 1822 8
50t 2085 724 720 510 710 610 161 108 / 270 205 2022 10
75t 2335 970 930 600 800 500 185 135 / 320 250 2632 10
100t 3130 1360 1100 955 1000 800 131 200 350 335 270 2834 12
200t 3548 1707 1090 1318 1000 900 173 280 / 295 / 3038 16
320t 4005 2004 1350 1235 1120 1000 160 316 / 370 / 4046 24
400t 4315 2338 1450 1270 1120 1000 160 316 / 420 / 4046 24
Application
Mobile crane hooks are widely used in urban construction, road and bridge construction, port logistics loading and unloading, power facility maintenance and emergency rescue. With its rapid transfer capability and flexible adaptability, it is particularly suitable for construction environments with limited space, industrial sites that require high-frequency lifting operations, and rapid response to emergencies. It can efficiently complete diversified tasks such as steel structure installation, equipment handling, and material transportation. It is an indispensable key lifting equipment in modern engineering construction and emergency support systems.
Support

Weihua Aftermarket Keeps Your Equipment Running

Multi-Brand Technical Excellence
25% Cost Saving
30% Downtime Reduction
your Name *
your Email *
your Phone
your Whatsapp
Your company
Products&service
Message *

Related Products

Crawler Crane Hook

Specifications
3.2t-500t
Performance
Easy to install and disassemble, standard rolling pulley, wear-resistant, long service life
Bridge Crane Hook

Bridge Crane Hook

Specifications
3.2t-500t
Performance
Easy to install and disassemble, standard rolling pulley, wear-resistant, long service life
Gantry Crane Hook

Gantry Crane Hook

Specifications
3.2t-500t
Performance
Easy to install and disassemble, standard rolling pulley, wear-resistant, long service life
Overhead Crane Hook

Overhead Crane Hook

Specifications
3.2t-500t
Performance
Easy to install and disassemble, standard rolling pulley, wear-resistant, long service life

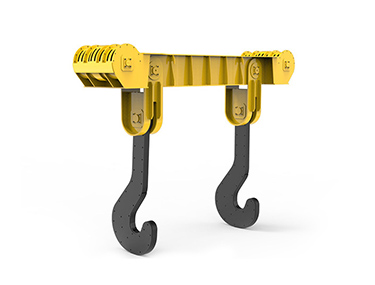

Gantry Ladle Hook with Spreader
